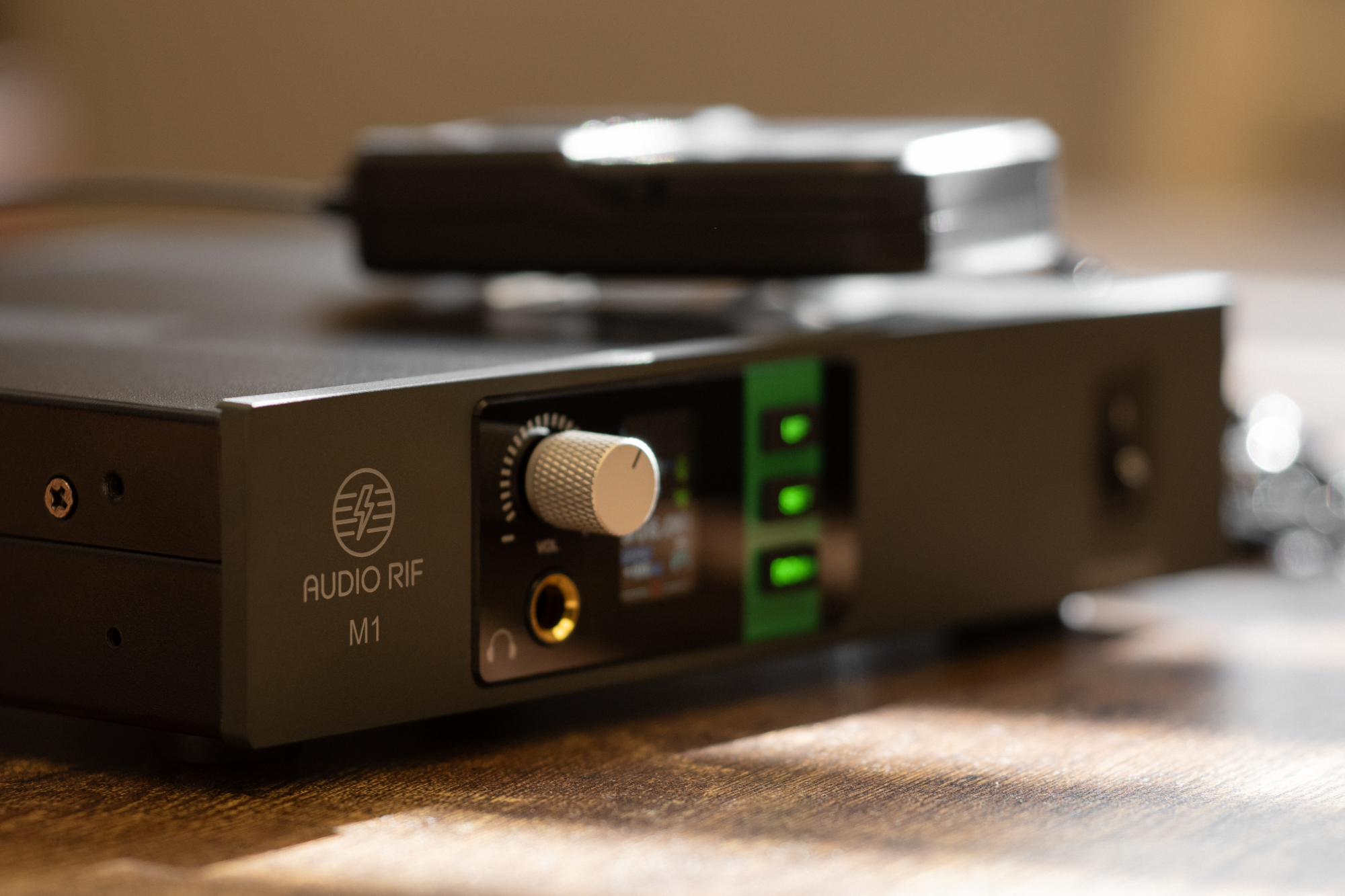

M1 Stereo Wireless In-Ear Monitor System

The Audio Rif M1 is a professional-grade wireless in-ear monitor system featuring UHF ultra-high frequency wireless stereo transmission technology. With a high-performance CODEC processing chip and 24bit/48kHz audio sampling rate, the M1 delivers clarity and high-fidelity sound quality with less than 0.5% THD. The system provides up to 260ft range in open areas for professional monitoring applications.

Simple. Flexible. Reliable.

Ships mid-January.

$349.00
M1 Stereo Wireless In-Ear Monitor System

<0.5%

THD

24bit/48KHz

Sampling

260ft

Range

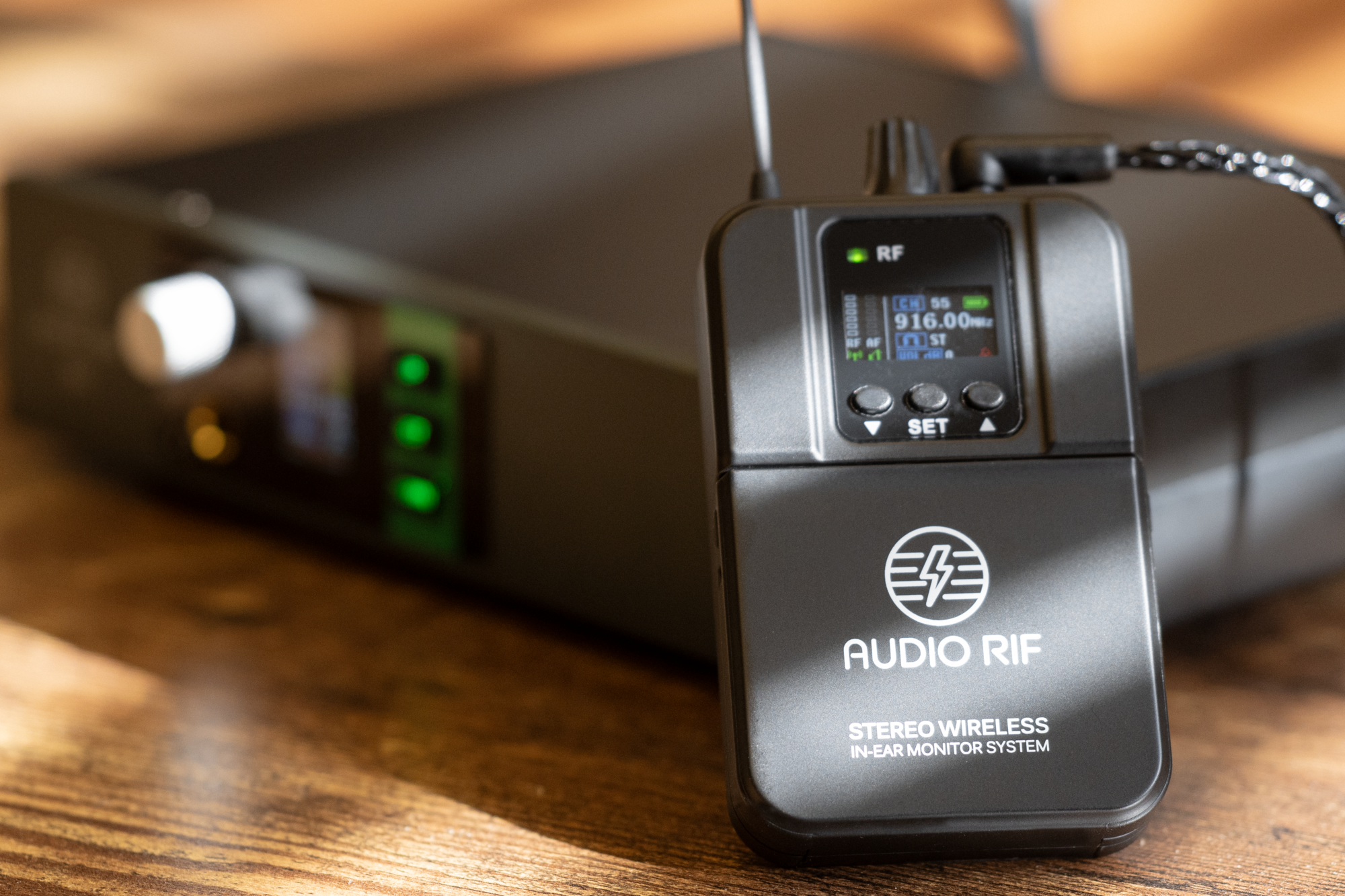

M1 Transmitter

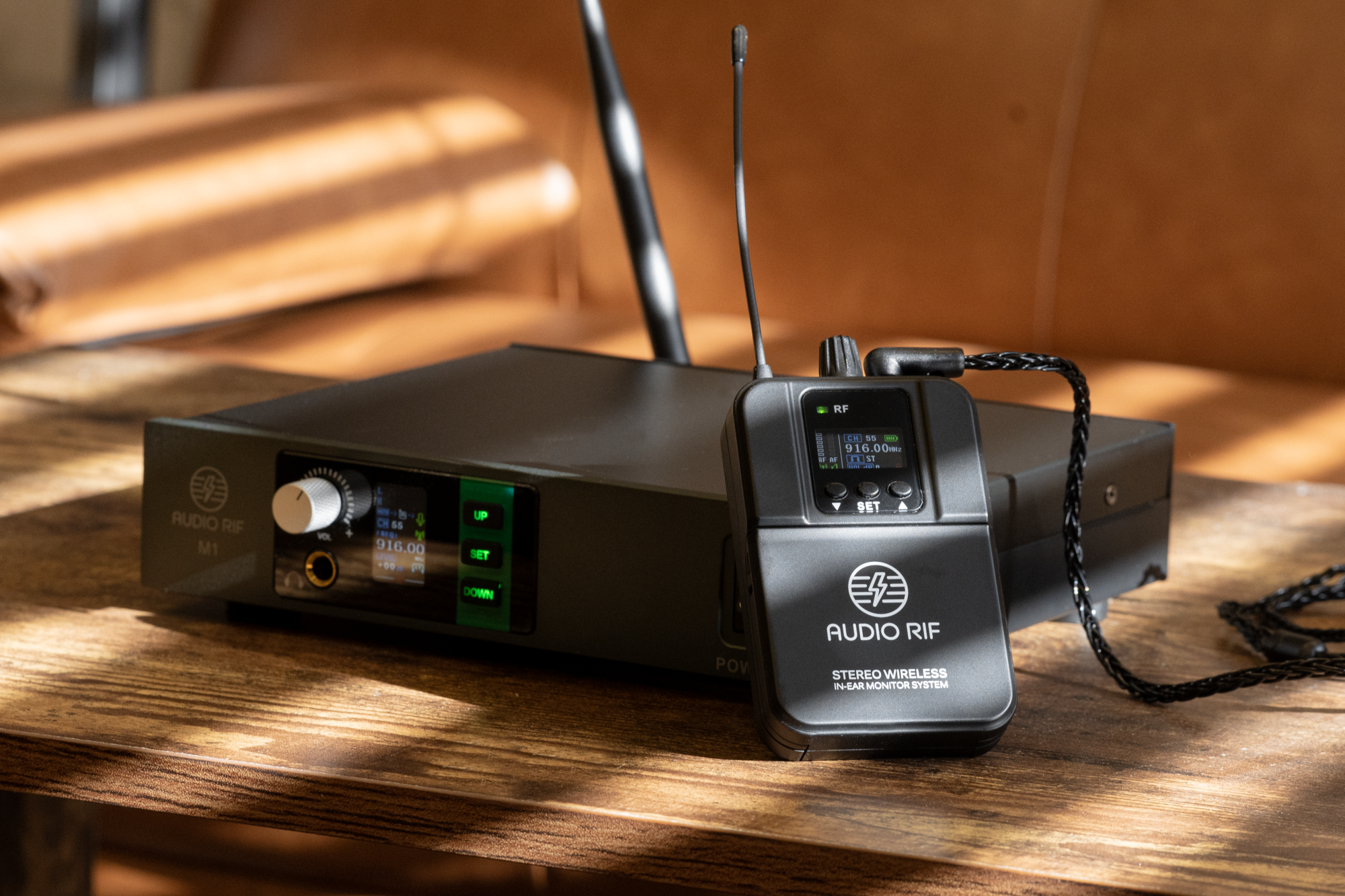

M1 Receiver

What's In The Box

  • 1x Transmitter
  • 1x Receiver
  • 1x Transmitter's Antenna
  • 2x 1/4" Audio Cable
  • 1x Power Supply
  • 1x User Manual

Product Specifications

Receiver

  • Frequency range: 902-928MHz
  • Modulation: Integrated
  • Audio sampling: 24bit/48KHz
  • T.H.D: <0.5% @1KHz
  • Frequency response: 20Hz-20KHz(±3dB)
  • Output jack: 3.5mm stereo earbuds jack
  • Latency: 6ms (typical)
  • Frequency match: Adjust manually
  • Power supply: 2×1.5V AA battery
  • Operating range: 260 feet (ideal open area)
  • Display: IPS TFT display
  • Dimensions: 64(width) × 96(height) × 21(depth) mm

Transmitter

  • Frequency range: 902-928MHz
  • Modulation: Integrated
  • T.H.D: <0.5% @1KHz
  • Frequency response: 20Hz-20KHz(±3dB)
  • Audio output: 6.35mm balanced socket ×2 (LOOP OUT)
  • Audio input: 6.35mm balanced socket ×2
  • Audio input level: +10dBu (max)
  • Power supply: DC 12V/1000mA
  • Display: IPS TFT display
  • Dimensions: 210(width) × 45(height) × 180(depth) mm
